Removing your Euro Cylinder from the door

Please choose from the following Euro Cylinder types. Advice will then be given on removing and correctly measuring your Euro cylinder. If you do not have a key to your Euro Cylinder then you may need to consult a locksmith.

Step 1

Measuring your Euro Cylinder

There are two methods for measuring Euro Cylinders and we list the measurements for both on this site.

We do, however, strongly recommend using method 1 as this is the most reliable.

Undo and remove the cylinder screw. This is located on the lock plate on the edge of the door. Sometimes the screw head is hidden behind this plate. Carefully remove plate to reveal screw

Step 2

Insert the key into the Euro Cylinder. Gently pull on the key whilst turning to the left or right Continue pulling until the Euro Cylinder is free of the door. Sometimes it may help to loosen the door handles if the cylinder is a tight fit

Carefully measure your Euro Cylinder as detailed below. Identify and order your replacement

Step 3

Method 1

Method 2

 5
mm

30
mm

10
mm

35mm

10mm

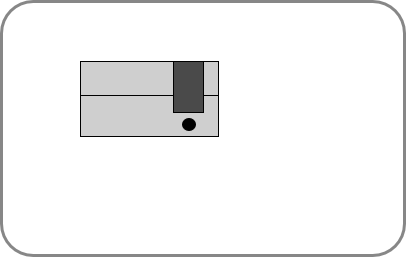

Method 1 involves measuring the Euro Cylinder in three parts, the first cylinder section, the centre “cam”, and the last cylinder section. Always measure the shortest cylinder section first.

Method 2 involves measuring the Euro Cylinder in two parts, each cylinder section is measured to the centre of the “cam” or fixing hole. As with method one, always measure the shortest side first

Example
30mm + 10mm+ 05mm

The cylinder required would be 30-10-05

Example
35mm + 10mm

The cylinder required would be 35/10

Buying your Euro Cylinder

Now you have discovered the correct measurements for your Euro cylinder. Please choose the correct product from the list below

25-10-05 Or 30/10

30-10-05 Or 35/10

35-10-05 Or 40/10

40-10-05 Or 45/10

45-10-05 Or 50/10

55-10-05 Or 60/10

£6.25

£6.50

£6.75

£7.25

Silver

£6.25

£6.50

£6.75

£7.25

£7.50

£8.95

Gold

Cylinder Size

Can’t find the cylinder you’re looking for? Some unusual sizes may be available to order. Please call us for details on: 08456 123 878

Not Available

Silver

Gold

£12.50

Not Available

Not Available

Not Available

Not Available

Not Available

Not Available

Not Available

Not Available

Not Available

Not Available

Not Available

Not Available

Select

Select

Select

Select

Select

Select

Select

Select

Select

Select

Select

Silver

Gold

Specialist Half Euro Cylinders

Silver

Gold

Adjustable Cam Half Euro Cylinder.
Suitable for use in switch boxes etc.
Cam can easily be adjusted to different positions

“Blind” Thumbturn Half Euro Cylinder.
Single sided Euro Cylinder operated by thumbturn only.
Cylinder does not use keys

T30-10-05 Or T35/10

25-10-05 Or 30/10

£14.00

Not Available

Not Available

£12.70

Select

Select

Cylinder Size

Cylinder Size

High Quality 6 Pin Euro Cylinders
Resistant to Picking, Drilling & Bumping. Snap-safe & Conforming to BS EN1303

Standard Quality Euro Cylinders
Good Quality, Reliable & Great Value 5 Pin Cylinders.

All Prices Shown Excluding VAT And Delivery Charges
