Removing your Euro Cylinder from the door
Please choose from the following Euro Cylinder types. Advice will then be given on removing and correctly measuring your Euro cylinder. If you do not have a key to your Euro Cylinder then you may need to consult a locksmith.
Step 1
Measuring your Euro Cylinder
There are two methods for measuring Euro Cylinders and we list the measurements for both on this site.
We do, however, strongly recommend using method 1 as this is the most reliable.
Jump To
List Of
Products
£15.70
£17.10
Undo and remove the cylinder screw. This is located on the lock plate on the edge of the door. Sometimes the screw head is hidden behind this plate. Carefully remove plate to reveal screw
Step 2
Insert the key into the Euro Cylinder. Gently pull on the key whilst turning to the left or right Continue pulling until the Euro Cylinder is free of the door. Sometimes it may help to loosen the door handles if the cylinder is a tight fit
Carefully measure your Euro Cylinder as detailed below. Identify and order your replacement
Step 3
Method 1
Method 2
40mm
30mm
10mm
35mm
45mm

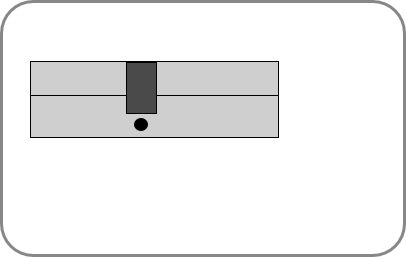

Method 1 involves measuring the Euro Cylinder in three parts, the first cylinder section, the centre “cam”, and the last cylinder section. Always measure the shortest cylinder section first
Method 2 involves measuring the Euro Cylinder in two parts, each cylinder section is measured to the centre of the “cam” or fixing hole. As with method one, always measure the shortest side first
Example
30mm + 10mm
+ 40mm
The cylinder required would be 30-10-40
Example
35mm + 45mm
The cylinder required would be 35/45
Buying your Euro Cylinder
Now you have discovered the correct measurements for your Euro cylinder. Please choose the correct product from the list below
25-10-25 Or 30/30
25-10-30 Or 30/35
25-10-35 Or 30/40
25-10-40 Or 30/45
25-10-45 Or 30/50
30-10-30 Or 35/35
30-10-35 Or 35/40
30-10-40 Or 35/45
30-10-45 Or 35/50
30-10-50 Or 35/55
30-10-55 Or 35/60
35-10-35 Or 40/40
35-10-40 Or 40/45
35-10-45 Or 40/50
35-10-50 Or 40/55
35-10-55 Or 40/60
40-10-40 Or 45/45
40-10-45 Or 45/50
40-10-50 Or 45/55
40-10-55 Or 45/60
40-10-60 Or 45/65
45-10-45 Or 50/50
45-10-50 Or 50/55
45-10-55 Or 50/60
50-10-50 Or 55/55
£5.85
£6.25
£6.75
£7.45
£7.75
£6.95
£7.25
£7.85
£7.99
£8.45
£12.50
£7.85
£7.99
£8.15
£8.35
£8.15
£8.35
£8.50
£8.99
£8.75
£13.85
£13.95
£14.50
Silver
£5.85
£6.25
£6.75
£7.45
£7.75
£6.95
£7.25
£7.85
£7.99
£8.45
£12.50
£7.85
£7.99
£8.15
£8.35
£9.50
£8.15
£8.35
£8.50
£8.99
£9.25
£8.75
£13.85
£13.95
£14.50
Gold
Cylinder Size
Can’t find the cylinder you’re looking for? Some unusual sizes may be available to order. Please call us for details on: 08456 123 878
£13.50
£14.25
£14.50
£14.75
£14.25
£14.95
£14.95
£14.95
£15.25
£14.75
£15.50
£15.50
£15.50
£15.75
£15.25
£15.50
£15.75
£16.25
£15.75
£16.75
£13.50
£14.25
£14.50
£14.75
£14.25
£14.95
£14.95
£15.25
£14.75
£15.50
£15.50
£15.50
£15.25
£15.50
£15.75
£15.75
Gold
Silver
16-10-16 Or 21/21
20-10-20 Or 25/25
Silver
Gold
Cylinder Size
NEW! Extra Small Euro Cylinders
High quality 3 and 4 pin Euro cylinders
Standard Quality Euro Cylinders
Good Quality, Reliable & Great Value 5 Pin Cylinders.
High Quality 6 Pin Euro Cylinders
Resistant to Picking, Drilling & Bumping. Snap-safe
& Conforming to BS EN1303
All Prices Shown Excluding VAT And Delivery Charges
